Modern Dustbin MV Agusta Racer ‘Ballistic Trident’ by Rough Crafts

A Dustbin Brutale? Yes please!

Custom builder Winston Yeh of Rough Crafts has been making waves with his unique and often brutally-styled builds. His latest build, and possibly most visually striking, dubbed the ‘Ballistic Trident’ definitely has the Rough Crafts flair we’ve come to expect.

MV Agusta Ballistic Trident

Commissioned by MV Agusta Taiwan, Winston was supplied with a new Brutale 800RR. He set out to capture the MV’s racing heritage and turned to old vintage GP images for inspiration. In the photographs, the first thing that really stood out to him was the old dustbin full fairings that many of the bikes were fitted with. He knew he wanted to incorporate that into the build but also knew he wanted to design around some of the original dustbin’s flaws, like their susceptibility for being blown around by side winds, and for their negative effect on a bike’s turning radius.

MV Agusta Ballistic Trident by Rough Crafts

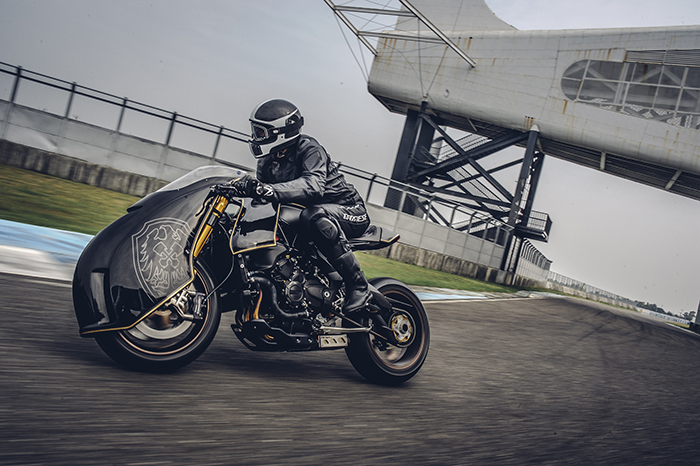

MV Agusta Ballistic Trident on track


Yeh set out to create a modernized dustbin that turns with the forks and has a much smaller side profile, with a continuous curve that runs from the nose to the tail. The Ballistic Trident’s fairing was designed as a full-scale 3D model, then was carved out of a big chunk of wood, and finally molded into carbon fiber. The whole fairing can be mounted or dismounted quickly, and he has a little clamp to fit a headlight without the fairing so it could be converted to road legal fairly easily.

MV Agusta Ballistic Trident


Yeh normally prefers to make his own exhausts but fell in love with a piece by exhaust-makers HP Corse that he couldn’t resist. Their ‘Hydro Tre’ piece is definitely a stunner with its three sweeping exits off the right-hand side. The rest of the components are top-notch including all titanium bolts, Öhlins FGR800 forks up front and an Öhlins TTX out back, Beringer Brakes, and Rough Crafts x Wukawa Industry Wheels.

The Ballistic Trident is a visual work of art but it’s also clear that Winston put plenty of thought into functionality as well. When paying homage to vintage race bikes, you’d hope the final outcome would be a bike that could hold its own on the track and it sure looks like he’s accomplished that and more with the Ballistic Trident.

Rough Crafts custom MV Agusta

Rough Crafts: Online | Facebook | Instagram | Photos by JL Photography

Specs:

  • Year / Model: 2015 MV Agusta BRUTALE 800RR
  • Engine / Size: MV Agusta / 798cc
  • Frame: MV Agusta / stock with custom made sub-frame
  • Front End Make / Type: Rough Crafts custom triples with Öhlins FGR800 forks
  • Rear Shocks: Ohlins TTX
  • Exhausts: HP Corse “Hydro-Tre”
  • Wheels F: Rough Crafts x Wukawa Industry “RCVGP-6″ style / 17 x 3.50”
  • Wheels R: Rough Crafts x Wukawa Industry “RCVGP-6″ style / 17 x 6.00”
  • Tires F: Pirelli DIABLO SUPERBIKE 120/70 R 17
  • Tires R: Pirelli DIABLO SUPERBIKE 180/60 R 17
  • Brakes F: Rough Crafts/BERINGER one-off discs with BERINGER 4 pistons radial calipers
  • Brakes R: stock disc with BERINGER 2 pistons caliper
  • Paint: Air Runner Custom Paint
  • Assembly: MV Agusta Taiwan
  • Sheetmetal: OneHandMade
  • Gauge: Rough Crafts/Shark Factory
  • Foot controls: MV Agusta Corse
  • Handlebars: Bonamici Racing Clip ons
  • Handlebar controls: MV Agusta/Rough Crafts
  • Seat: Rough Crafts/HeChun custom seats
  • Tail Section: Rough Crafts
  • Gas caps: Rough Crafts
  • Grips: Motogadget
  • Turn Signals: Motogadget bar-ends

For your pure viewing pleasure, here’s a handful of additional glamour photos of this stunning build. Keep up the killer work Winston, we’re already looking forward to the next one!

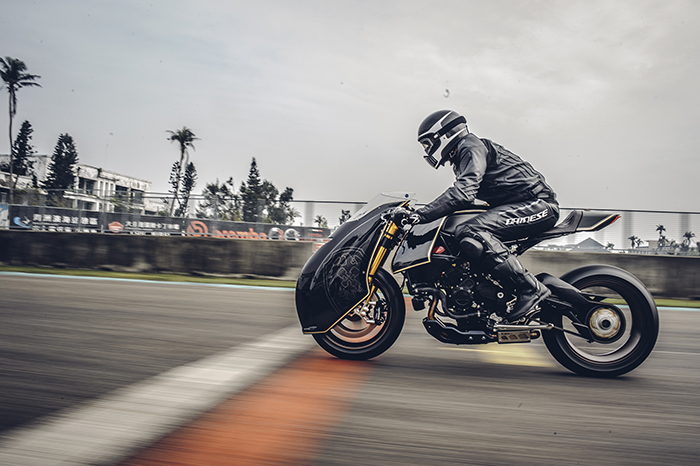

MV Agusta Ballistic Trident superbike

Ohlins suspension - MV Agusta Ballistic Trident

Custom MV Agusta Brutale 800RR

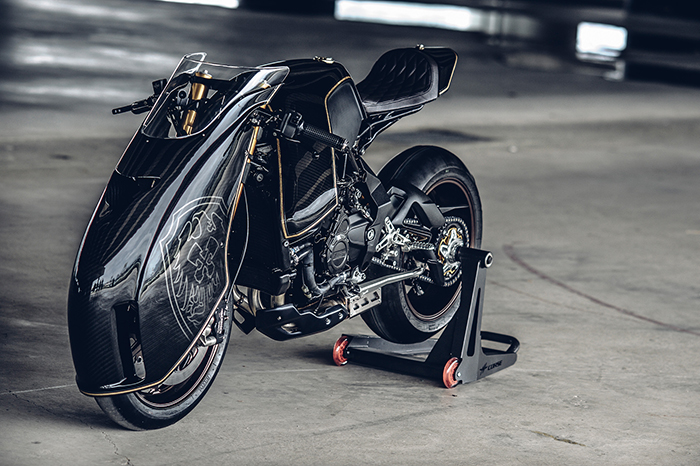

Custom carbon fiber dustinbin fairing MV Agusta Ballistic Trident

Custom exhaust on MV Agusta Ballistic Trident

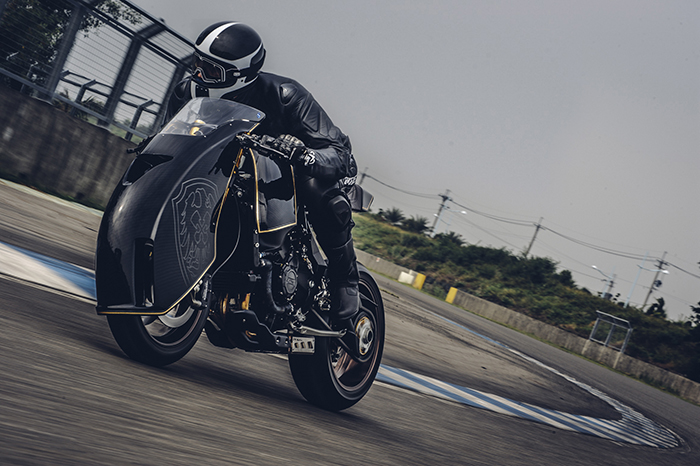

MV Agusta Ballistic Trident racer

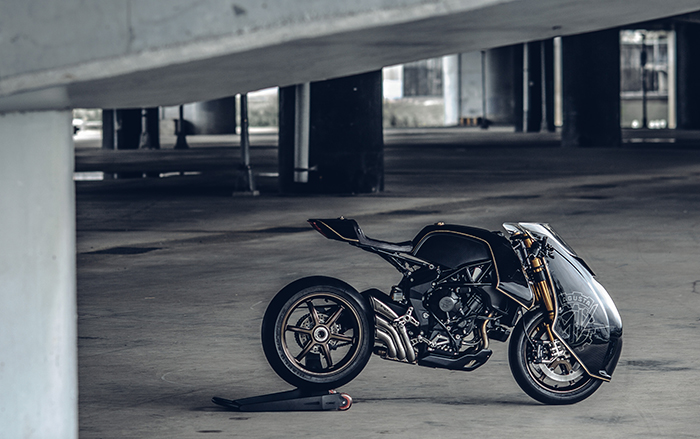

MV Agusta Ballistic Trident side view
